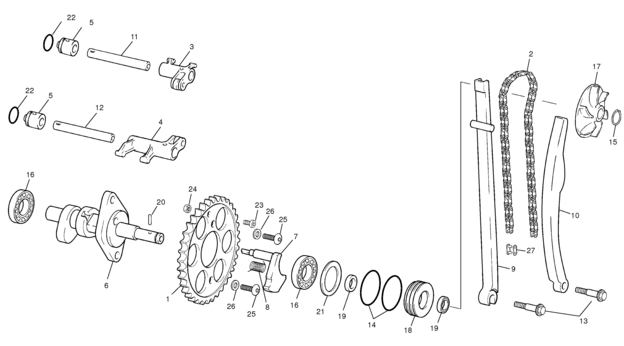

DISTRIBUTION SYSTEM
POZYCJA NUMER CZĘŚCI OPIS CENA NA STANIE ILOŚĆ
POZYCJA NUMER CZĘŚCI OPIS CENA NA STANIE ILOŚĆ
1 0058 CAM SHAFT PIGNON END 253.13 PLN brutto 205.80 PLN netto TAK
2 0059 CAM SHAFT CHAIN END 295.08 PLN brutto 239.90 PLN netto NIE
3 0060 INLET ROKER ARMS END 1094.70 PLN brutto 890.00 PLN netto TAK
4 0061 EXHAUSS ROCKER ARMS END 1143.04 PLN brutto 929.30 PLN netto TAK
5 0063 CUP PIN ROCKER ARMS END 49.32 PLN brutto 40.10 PLN netto TAK
6 0065 CAM SHAFT END 971.21 PLN brutto 789.60 PLN netto TAK
7 0067 DECOMPRESSOR AUTOMATIC END 418.57 PLN brutto 340.30 PLN netto TAK
8 0079 DECOMPESSOR SPRING AUTOMATIC END 4.55 PLN brutto 3.70 PLN netto TAK
9 0081 CHAIN GUIDE ENGIN END 31.36 PLN brutto 25.50 PLN netto TAK
10 0082 CHAIN GUIDE BACK ENGIN 450 END 30.26 PLN brutto 24.60 PLN netto TAK
11 0418 ROCKER ARMS SPINDLE INLET END 67.90 PLN brutto 55.20 PLN netto TAK
12 0419 EXHAUST ROCKER ARMS SPINDLE END 64.45 PLN brutto 52.40 PLN netto TAK
13 0535 SCREW CHAIN GUIDE BACK ENGIN END 24.11 PLN brutto 19.60 PLN netto TAK
14 0098 O RING FPM 29.1 X 1.6 10.82 PLN brutto 8.80 PLN netto TAK
15 0096 RETAINING RING 10X1 E 10 0.98 PLN brutto 0.80 PLN netto TAK
16 0093 BEARING 6201 C3 34.44 PLN brutto 28.00 PLN netto TAK
17 0095 WATER PUMP TURBINE END ALU 154.98 PLN brutto 126.00 PLN netto NIE
18 0097 SEAL SPACER END 58.79 PLN brutto 47.80 PLN netto TAK
19 0099 SEAL 10X18X4/5 DL VITON 50.92 PLN brutto 41.40 PLN netto TAK
20 0110 NEEDL 3X15.8 5.41 PLN brutto 4.40 PLN netto TAK
21 0542 WASHER 22 X 35 X 2 33.83 PLN brutto 27.50 PLN netto TAK
22 0064 O RING 17.5 X 1.5 0.49 PLN brutto 0.40 PLN netto NIE
23 0600 SCREW CHC M5 X 8 10.9 ZN 3.32 PLN brutto 2.70 PLN netto TAK
24 M355 NUT NYLSTOP M5 0.49 PLN brutto 0.40 PLN netto TAK
25 0599 SCREW BHC M8 X 10 1.60 PLN brutto 1.30 PLN netto TAK
26 1432 WASHER X AET 8 5.41 PLN brutto 4.40 PLN netto TAK
27 0059 CAM SHAFT CHAIN END 295.08 PLN brutto 239.90 PLN netto NIE
22 0064 O RING 17.5 X 1.5 0.49 PLN brutto 0.40 PLN netto NIE
19 0099 SEAL 10X18X4/5 DL VITON 50.92 PLN brutto 41.40 PLN netto TAK
26 1432 WASHER X AET 8 5.41 PLN brutto 4.40 PLN netto TAK
16 0093 BEARING 6201 C3 34.44 PLN brutto 28.00 PLN netto TAK
5 0063 CUP PIN ROCKER ARMS END 49.32 PLN brutto 40.10 PLN netto TAK
25 0599 SCREW BHC M8 X 10 1.60 PLN brutto 1.30 PLN netto TAK
