125 SE FACTORY

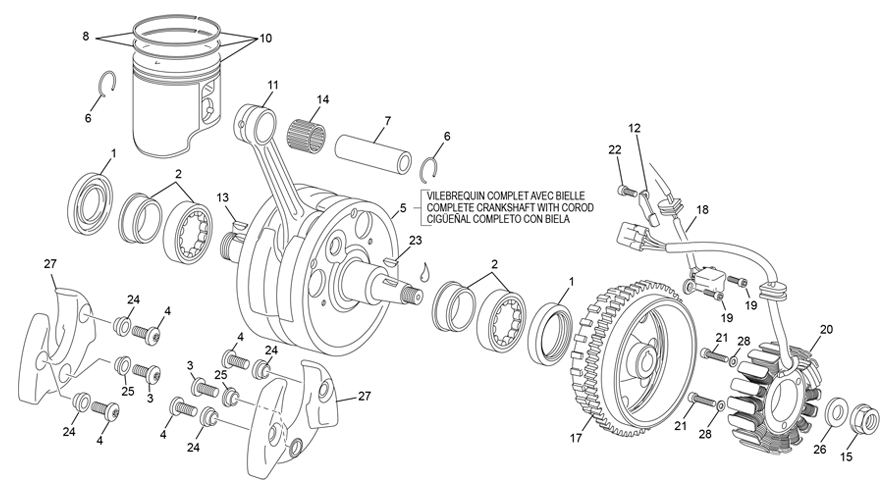

CRANKSHAFT ASSY
POZYCJA NUMER CZĘŚCI OPIS CENA NA STANIE ILOŚĆ
POZYCJA NUMER CZĘŚCI OPIS CENA NA STANIE ILOŚĆ
1 8369 SEAL RING 25X38X7 STEEL BODY 38.87 PLN brutto 31.60 PLN netto TAK
2 1592 ROLLER BEARING NJ206 ECP/C3 HVC 058 WITHOUT GROOVE 319.06 PLN brutto 259.40 PLN netto TAK
3 7223 SCREW TORX M6 X 12 CRANKSHAFT 125 SE 3.08 PLN brutto 2.50 PLN netto TAK
4 6881 SCREW VIS M6X16 DIN 14583 8.98 PLN brutto 7.30 PLN netto TAK
5 5852 CRANKSHAFT ASSY 125 SE 3167.99 PLN brutto 2575.60 PLN netto TAK
6 7224 PISTON SIRCLIPS 125 SE/ST 3.32 PLN brutto 2.70 PLN netto TAK
7 4813 PISTON PIN 125 END 2T 66.67 PLN brutto 54.20 PLN netto TAK
8 7225 PISTON RING 125 SE SET 340.46 PLN brutto 276.80 PLN netto TAK
10 4812 PISTON CPL 125 SE A 557.93 PLN brutto 453.60 PLN netto TAK
10 6744 PISTON CPL 125 SE B 643.61 PLN brutto 523.26 PLN netto TAK
11 5853 CONNECTING ROD KIT 125 SE 1141.32 PLN brutto 927.90 PLN netto TAK
12 3828 FIXATION HARNESS PLATE 2T END 26.32 PLN brutto 21.40 PLN netto TAK
13 4224 WOODDURFF DM 13 T4 13.65 PLN brutto 11.10 PLN netto TAK
14 7226 NEEDLE BEARIND 125 SE 107.50 PLN brutto 87.40 PLN netto NIE
15 1405 NUT M12 X 1 250/450 45.96 PLN brutto 37.37 PLN netto TAK
17 7227 ROTOR 125 SE 994.70 PLN brutto 808.70 PLN netto TAK
18 5904 PULSEUR COIL 125 SE 99.26 PLN brutto 80.70 PLN netto TAK
19 2990 SCREW CHC M5x12 Ni Tr 6.15 PLN brutto 5.00 PLN netto TAK
20 5903 STATOR INGNITION 125 SE 577.61 PLN brutto 469.60 PLN netto TAK
21 1029 SCREW M5 X 20 Ni Tr 3.81 PLN brutto 3.10 PLN netto TAK
22 1474 SCREW M4 X 8 CHC Ni Tr 2.83 PLN brutto 2.30 PLN netto TAK
23 0055 WOODDURFF 3X5 13 DIN 6888 13.78 PLN brutto 11.20 PLN netto TAK
24 7229 OUTSIDE SCREW SPACER CRANK 125 SE 28.78 PLN brutto 23.40 PLN netto TAK
25 7230 INSIIDE SCREW SPACER CRANK 125 SE 3.57 PLN brutto 2.90 PLN netto TAK
26 1963 WASHER CONIQUE 12.2 X 23 X 1 6.03 PLN brutto 4.90 PLN netto NIE
27 7228 CRANK SHAFT PLASTIC WEIGHT 125 SE 31.98 PLN brutto 26.00 PLN netto TAK
28 4751 RONDELLE SCHNORR M5 ZI 4.06 PLN brutto 3.30 PLN netto NIE
19 2990 SCREW CHC M5x12 Ni Tr 6.15 PLN brutto 5.00 PLN netto TAK
21 1029 SCREW M5 X 20 Ni Tr 3.81 PLN brutto 3.10 PLN netto TAK
28 4751 RONDELLE SCHNORR M5 ZI 4.06 PLN brutto 3.30 PLN netto NIE
1 8369 SEAL RING 25X38X7 STEEL BODY 38.87 PLN brutto 31.60 PLN netto TAK
2 1592 ROLLER BEARING NJ206 ECP/C3 HVC 058 WITHOUT GROOVE 319.06 PLN brutto 259.40 PLN netto TAK
27 7228 CRANK SHAFT PLASTIC WEIGHT 125 SE 31.98 PLN brutto 26.00 PLN netto TAK
4 6881 SCREW VIS M6X16 DIN 14583 8.98 PLN brutto 7.30 PLN netto TAK
3 7223 SCREW TORX M6 X 12 CRANKSHAFT 125 SE 3.08 PLN brutto 2.50 PLN netto TAK
4 6881 SCREW VIS M6X16 DIN 14583 8.98 PLN brutto 7.30 PLN netto TAK
24 7229 OUTSIDE SCREW SPACER CRANK 125 SE 28.78 PLN brutto 23.40 PLN netto TAK
24 7229 OUTSIDE SCREW SPACER CRANK 125 SE 28.78 PLN brutto 23.40 PLN netto TAK
25 7230 INSIIDE SCREW SPACER CRANK 125 SE 3.57 PLN brutto 2.90 PLN netto TAK
24 7229 OUTSIDE SCREW SPACER CRANK 125 SE 28.78 PLN brutto 23.40 PLN netto TAK
4 6881 SCREW VIS M6X16 DIN 14583 8.98 PLN brutto 7.30 PLN netto TAK
6 7224 PISTON SIRCLIPS 125 SE/ST 3.32 PLN brutto 2.70 PLN netto TAK
