3.2 4T

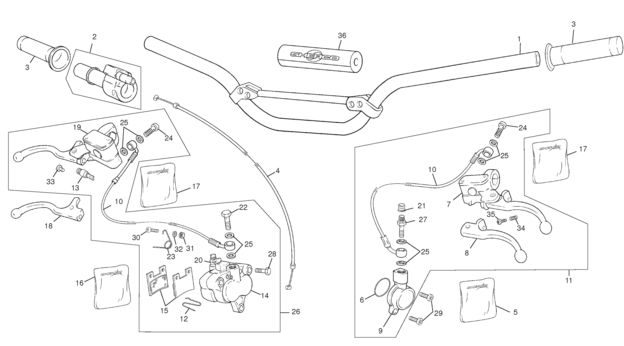

HANDLEBAR
POZYCJA NUMER CZĘŚCI OPIS CENA NA STANIE ILOŚĆ
POZYCJA NUMER CZĘŚCI OPIS CENA NA STANIE ILOŚĆ
1 C746 HANDLEBAR TRIAL ANTHRACITE 06 308.24 PLN brutto 250.60 PLN netto NIE
2 C074 THROTLE CONTROL OXIA 114.02 PLN brutto 92.70 PLN netto TAK
3 1662 GRIPS SET TRIAL 77.37 PLN brutto 62.90 PLN netto TAK
4 C076 THROTTLE CABLE TR DELLORTO 104.80 PLN brutto 85.20 PLN netto TAK
5 5529 PISTON KIT BBRAKE TRIAL BRAKTEC 190.77 PLN brutto 155.10 PLN netto TAK
6 R024 O-RING 31 X 1.6 (CLUTCH) 5.19 PLN brutto 4.22 PLN netto TAK
7 R030 CLUTCH FRONT PUMP ASSY 420.54 PLN brutto 341.90 PLN netto NIE
8 R441 FRONT CLUTCH LEVER POLISHING 293.36 PLN brutto 238.50 PLN netto TAK
9 R032 RECEPTEUR CLUTCH CPL 269.74 PLN brutto 219.30 PLN netto TAK
10 R033 CLUTCH HOSE 430.13 PLN brutto 349.70 PLN netto TAK
11 M089 COMPLETE CLUTCH SET 906.63 PLN brutto 737.10 PLN netto TAK
12 R042 CLIP PAD BRAKE 34.07 PLN brutto 27.70 PLN netto TAK
13 R207 FRONT BRAKE ELECTRIC CONTACT 37.64 PLN brutto 30.60 PLN netto TAK
14 5524 BODY FRONT CALIPER 2 PISTON BRAKTEC 720.04 PLN brutto 585.40 PLN netto TAK
15 C389 FRONT PAD BRAK PAIR 2002 233.09 PLN brutto 189.50 PLN netto TAK
16 5525 KIT REPARATION CALIPER 4 PISTONS BRAKTEC 167.65 PLN brutto 136.30 PLN netto TAK
17 5517 PISTON KIT 10 MM BRAKTEC 184.75 PLN brutto 150.20 PLN netto TAK
18 R440 FRONT BRAKE LEVER POLISH 270.85 PLN brutto 220.20 PLN netto NIE
19 R056 FRONT PUMP ASSY 907.37 PLN brutto 737.70 PLN netto NIE
20 R057 PURGE STIRRUP SCREW 78.23 PLN brutto 63.60 PLN netto TAK
21 3618 DUST COVER END 12 2.58 PLN brutto 2.10 PLN netto TAK
22 R059 LINK SCREW M10 X 21 HEXA 82.41 PLN brutto 67.00 PLN netto TAK
23 R043 wycofana GUIDE FRONT BRAKE HOSE 4.86 PLN brutto 3.96 PLN netto NIE —
24 R044 SCREW PUMP BRAKE/CLUTCH M10X19 17.22 PLN brutto 14.00 PLN netto TAK
25 R074 WASHER COPPER 10x14x1.5 21.52 PLN brutto 17.50 PLN netto TAK
26 C318 FRONT BRAKE GROUP COMPLETE 1675.01 PLN brutto 1361.80 PLN netto TAK
27 R068 PURGE STIRRUP SCREW 139.85 PLN brutto 113.70 PLN netto TAK
28 R236 PIN FRONT CALIPER DL PISTON 81.18 PLN brutto 66.00 PLN netto NIE
29 M252 SCREW CHC 6 X 20 Zn Ni Tr 2.21 PLN brutto 1.80 PLN netto TAK
30 M283 SCREW BHC 6 X 16 ZI NI TR 5.54 PLN brutto 4.50 PLN netto TAK
31 M306 NUT NYLSTOP M6 0.61 PLN brutto 0.50 PLN netto TAK
32 M317 WASHER 6X12 Zi Ni Tr 0.61 PLN brutto 0.50 PLN netto TAK
33 R366 BUSH STOP FR BRAKE 78.23 PLN brutto 63.60 PLN netto TAK
34 R367 SPRING CLUTCH LEVER 89.67 PLN brutto 72.90 PLN netto TAK
35 R368 SCREW REGUL CLUTCH LEVER 1.84 PLN brutto 1.50 PLN netto NIE
36 C674 FOAM HANDLEBAR 81.67 PLN brutto 66.40 PLN netto TAK
25 R074 WASHER COPPER 10x14x1.5 21.52 PLN brutto 17.50 PLN netto TAK
25 R074 WASHER COPPER 10x14x1.5 21.52 PLN brutto 17.50 PLN netto TAK
17 5517 PISTON KIT 10 MM BRAKTEC 184.75 PLN brutto 150.20 PLN netto TAK
10 R033 CLUTCH HOSE 430.13 PLN brutto 349.70 PLN netto TAK
24 R044 SCREW PUMP BRAKE/CLUTCH M10X19 17.22 PLN brutto 14.00 PLN netto TAK
3 1662 GRIPS SET TRIAL 77.37 PLN brutto 62.90 PLN netto TAK
25 R074 WASHER COPPER 10x14x1.5 21.52 PLN brutto 17.50 PLN netto TAK
