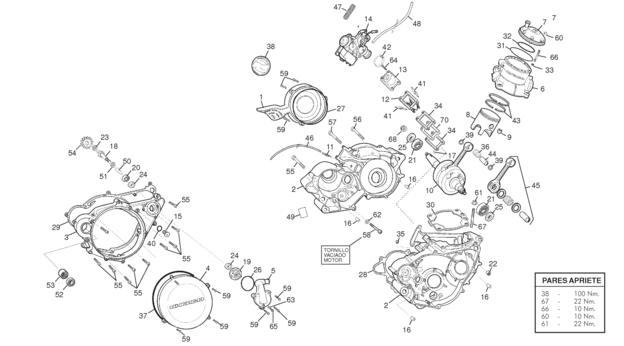

Lista dragramów MOTO SHERCO 2.9 HOMOL 2005 (2.9)

MOTO SHERCO 2.9 HOMOL 2005

POZYCJA	NUMER CZĘŚCI	OPIS	CENA	NA STANIE	ILOŚĆ
1	M001	IGNITION COVER	33.46 PLN brutto 27.20 PLN netto	NIE
2	M391	GROUP SECOND SHAFT WITH PINION 03	1762.47 PLN brutto 1432.90 PLN netto	TAK
3	M382	BOTTOM CLUTCH COVER 03	674.04 PLN brutto 548.00 PLN netto	TAK
4	M383	CLUTCH COVER 03	210.45 PLN brutto 171.10 PLN netto	TAK
5	2014	WATER PUMP COVER BLACK TR	196.43 PLN brutto 159.70 PLN netto	TAK
6	M388	CYLINDER HEAD 1.25 03	1245.38 PLN brutto 1012.50 PLN netto	TAK
7	M057	GEAR PINION 2EME	169.86 PLN brutto 138.10 PLN netto	TAK
8	C467 wycofana	PISTON DIAM 50 100 TRIAL	546.49 PLN brutto 444.30 PLN netto	TAK	—
9	............		—	NIE
10	M211		2938.47 PLN brutto 2389.00 PLN netto	TAK
11	M016	AIR VENT CRANCKCASES	18.82 PLN brutto 15.30 PLN netto	TAK
12	C470	REEDS CASE 80-125 TRIAL	222.14 PLN brutto 180.60 PLN netto	TAK
13	M019 wycofana	SEE 1595+5670 ADMISION PIPE	349.16 PLN brutto 283.87 PLN netto	NIE	—
14	M020	A CARBURETOR COMPLETE PHBL26BS	1168.38 PLN brutto 949.90 PLN netto	NIE
15	8374	MAGNETIC OIL CAP 2T 4T TRIAL	22.14 PLN brutto 18.00 PLN netto	TAK
16	M067	BUSH 3 EME	155.23 PLN brutto 126.20 PLN netto	TAK
17	M023	WOODRUFF KEY	8.61 PLN brutto 7.00 PLN netto	TAK
18	M363	WATER PUMP AXELE EVOLUTION 3	212.05 PLN brutto 172.40 PLN netto	TAK
19	M351	WATERPUMP TURBINE EVOLUTION2	35.92 PLN brutto 29.20 PLN netto	TAK
20	0577 Zamiennik: M027	BEARING 22 X 8 X 7 ( SEE M027)	11.40 PLN brutto 9.27 PLN netto	TAK
21	M072	WASHER 22X28X1	3.32 PLN brutto 2.70 PLN netto	TAK
22	M029	WATER PUMP NEEDLE BEARING HK 0808	46.86 PLN brutto 38.10 PLN netto	TAK
23	M030	WATERPUMP BUSH 8X16X1	13.65 PLN brutto 11.10 PLN netto	TAK
24	M075	BEARING 20X47X14 2RSH	57.07 PLN brutto 46.40 PLN netto	TAK
25	M076	NEEDLE BEARING15X21X12	64.21 PLN brutto 52.20 PLN netto	TAK
26	M033	O-RING WATER PUMP COVER 37X2	1.84 PLN brutto 1.50 PLN netto	TAK
27	11670	O-RING 144 X 2.5 NBR 70SH	14.76 PLN brutto 12.00 PLN netto	TAK
28	M220	CENTRAL CRANCKASE GASKET 125/200CC	28.04 PLN brutto 22.80 PLN netto	TAK
29	M036	CLUTCH GASKET	25.71 PLN brutto 20.90 PLN netto	NIE
30	M221	CILYNDER GASKET 125/200CC	21.89 PLN brutto 17.80 PLN netto	TAK
31	M222	O RING 100X2 VITON	38.13 PLN brutto 31.00 PLN netto	TAK
32	M223	O RING 75X2 VITON	26.20 PLN brutto 21.30 PLN netto	TAK
33	M040	CILYNDER O-RING BOLT 5,60 X 9,20 X 1,80	2.58 PLN brutto 2.10 PLN netto	TAK
21	M072	WASHER 22X28X1	3.32 PLN brutto 2.70 PLN netto	TAK
35	M042	CRANKCASE RIVET	7.75 PLN brutto 6.30 PLN netto	TAK
36	M241	NEEDLE BEARING KBK 125 16X20X20	155.96 PLN brutto 126.80 PLN netto	TAK
37	M045	O-RING 155X2	22.14 PLN brutto 18.00 PLN netto	TAK
38	C471	STICKER SHERCO COVER ENGINE 0.8	15.62 PLN brutto 12.70 PLN netto	TAK
40	M162	O-RING 10X2.5 OIL PLUG	0.98 PLN brutto 0.80 PLN netto	TAK
42	C110 Zamiennik: C120	COLLARD NORMA 32/50	7.26 PLN brutto 5.90 PLN netto	TAK
45	R212	ROD KIT 125/200	1480.06 PLN brutto 1203.30 PLN netto	TAK
46	M017	TUBE AIR VENT CRANCKCASES 3X5	16.11 PLN brutto 13.10 PLN netto	TAK
47	M044	SPRING CARBURETOR	1.11 PLN brutto 0.90 PLN netto	TAK
48	M012	RUBBER TUBE PETROL	10.46 PLN brutto 8.50 PLN netto	TAK
49	M079	STICKER OIL OUT	4.30 PLN brutto 3.50 PLN netto	NIE
50	R232	PIN WATER PUMP TAP	279.58 PLN brutto 227.30 PLN netto	TAK
51	M049	WASHER 8X14X0.5	0.98 PLN brutto 0.80 PLN netto	TAK
52	M170	OIL SEAL 17X28X5DL	12.67 PLN brutto 10.30 PLN netto	TAK
53	M077	NEEDLE BEARING 17X23X12	45.76 PLN brutto 37.20 PLN netto	TAK
54	M364	PINIO WATER PUMP NYLON	15.50 PLN brutto 12.60 PLN netto	TAK
56	M254	SCREW CHC 6 X 55	1.84 PLN brutto 1.50 PLN netto	TAK
57	M256	SCREW CHC 6 X 45	2.95 PLN brutto 2.40 PLN netto	TAK
58	M257	SCREW CHC 6 X 60	2.71 PLN brutto 2.20 PLN netto	TAK
60	M271	COLLAR HEX NUT BASIS NOTCHED M6	14.27 PLN brutto 11.60 PLN netto	TAK
61	M272	COLLAR HEX NUT M8	1.84 PLN brutto 1.50 PLN netto	TAK
62	M276	GASKET RING X6	1.60 PLN brutto 1.30 PLN netto	TAK
63	M277	GASKET RING X5	1.84 PLN brutto 1.50 PLN netto	TAK
64	M279	SCREW BHC 6X20 Zi Ni Tr PRE IMPREGNEE FAIBLE	2.71 PLN brutto 2.20 PLN netto	TAK
65	C358	SCREW M4 X 6 CHC	0.74 PLN brutto 0.60 PLN netto	TAK
66	M290	STUD CYLINDER HEAD 6X38	36.53 PLN brutto 29.70 PLN netto	TAK
67	M291	STUD CYLINDRE 8 X 46	38.74 PLN brutto 31.50 PLN netto	TAK
68	M295	HEX NUT M14 X 125	42.44 PLN brutto 34.50 PLN netto	TAK
70	............		—	NIE
7	C469 wycofana	CYLINDER HEAD 100 TRIAL	656.21 PLN brutto 533.50 PLN netto	TAK	—
2	M687	CRANCKCASES SET 125/200CC 05	4387.04 PLN brutto 3566.70 PLN netto	NIE
41	R411	ADMISSION CLAPET 80 TRIAL	44.53 PLN brutto 36.20 PLN netto	TAK
34	M041	REEDS CASE GASKET	5.17 PLN brutto 4.20 PLN netto	TAK
39	............		—	NIE
21	M218	CRANKSHAFT BEARING 125/200CC	53.01 PLN brutto 43.10 PLN netto	TAK
16	M022	DOUILLE CENTRAGE CARTER	19.93 PLN brutto 16.20 PLN netto	TAK
25	M219	CRANKSHAFT SEAL 125/200CC	35.92 PLN brutto 29.20 PLN netto	TAK
59	M250	SCREW CHC 5 X 16 NI TR	4.80 PLN brutto 3.90 PLN netto	TAK
55	M253	SCREW CHC 6 X 30	2.95 PLN brutto 2.40 PLN netto	TAK
24	M031	WATER PUMP SEAL 8X20X5DL	29.65 PLN brutto 24.11 PLN netto	TAK
