2.5i END

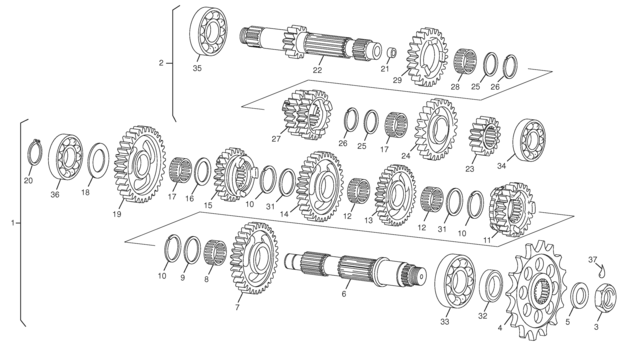

GEAR SET
POZYCJA NUMER CZĘŚCI OPIS CENA NA STANIE ILOŚĆ
POZYCJA NUMER CZĘŚCI OPIS CENA NA STANIE ILOŚĆ
1 1006 AXLE DRIVE ASSY 250 END 2652.00 PLN brutto 2156.10 PLN netto NIE
2 1005 AXLE MAIN ASSY 250 END 2652.00 PLN brutto 2156.10 PLN netto NIE
3 0994 NUT M18 X 100 58.06 PLN brutto 47.20 PLN netto TAK
4 1007 DRIVE SPROCKET Z14 250 END 124.24 PLN brutto 101.01 PLN netto TAK
4 1012 DRIVE SPROCKET Z13 250 END 116.60 PLN brutto 94.80 PLN netto TAK
5 1010 WASHER 18 X 35 X 2 21.77 PLN brutto 17.70 PLN netto TAK
6 1775 SECONDARY SHAFT 250/300 SEF 652.27 PLN brutto 530.30 PLN netto NIE
7 1776 GEAR 2ND Z31 179.33 PLN brutto 145.80 PLN netto TAK
8 1778 NEEDLE BEARING 24X28X10 CLOSE 71.83 PLN brutto 58.40 PLN netto TAK
9 1779 SHAFT WASHER 24.2X32X1.5 250 END 221.77 PLN brutto 180.30 PLN netto TAK
10 1780 CIRCLIP SW 23 6.40 PLN brutto 5.20 PLN netto TAK
11 1781 GEAR Z22 250 END 462.11 PLN brutto 375.70 PLN netto TAK
12 1782 NEEDLE BEARING K 20X24X10 250 CUT 102.83 PLN brutto 83.60 PLN netto TAK
13 5062 GEAR 4TH Z26 250 END 191.39 PLN brutto 155.60 PLN netto TAK
14 11189 REPLACEMENT KIT SPROCKET 1785 399.26 PLN brutto 324.60 PLN netto TAK
15 1784 GEAR 5TH Z24 250 END 365.19 PLN brutto 296.90 PLN netto TAK
16 1787 SHAFT WASHER 18.2X28X1.5 250 END 35.92 PLN brutto 29.20 PLN netto TAK
17 3366 NEEDL BEARING K18x22x10 INTEGRAL 81.55 PLN brutto 66.30 PLN netto TAK
18 1788 SHAFT WASHER 17X28X1.5 250 END 42.56 PLN brutto 34.60 PLN netto TAK
19 1789 GEAR 1 + PRIMARY SHAFT 671.95 PLN brutto 546.30 PLN netto TAK
20 M171 RETAINING RING17 2.21 PLN brutto 1.80 PLN netto TAK
21 1790 SPACER BRONZE END 250 80.69 PLN brutto 65.60 PLN netto TAK
22 1791 Zamiennik: 4332 AXLE MAIN 250 END 1214.84 PLN brutto 987.67 PLN netto TAK
23 1792 GEAR 1 Z16 250 END 365.19 PLN brutto 296.90 PLN netto TAK
24 1793 GEAR 6 Z25 250 END 305.78 PLN brutto 248.60 PLN netto TAK
25 1794 Washer 19.5x27.8x1 35.92 PLN brutto 29.20 PLN netto TAK
26 1795 CIRCLIP SW 21 39.98 PLN brutto 32.50 PLN netto TAK
27 1796 GEAR 3/4 Z19/21 250 END 372.07 PLN brutto 302.50 PLN netto TAK
28 1797 NEEDLE BEARING K22 250 CLOSE 103.94 PLN brutto 84.50 PLN netto TAK
29 1798 GEAR 5 Z23 250 END 305.78 PLN brutto 248.60 PLN netto TAK
31 1799 SHAFT WASHER 21.5X31X1 250 END 35.92 PLN brutto 29.20 PLN netto TAK
32 0877 SEAL RING 25 X 37 X 6 DL 250 END 9.84 PLN brutto 8.00 PLN netto TAK
33 0174 BEARING BALL 6205 C3 47.48 PLN brutto 38.60 PLN netto TAK
34 0875 BALL BEARING 6003-2RS1TN9/C3 46.62 PLN brutto 37.90 PLN netto TAK
35 0876 BALL BEARING 62/22 250 END 188.19 PLN brutto 153.00 PLN netto TAK
36 0874 BALL BEARING 6003 2RSLTN9/C3VT162 41.20 PLN brutto 33.50 PLN netto TAK
17 3366 NEEDL BEARING K18x22x10 INTEGRAL 81.55 PLN brutto 66.30 PLN netto TAK
10 1780 CIRCLIP SW 23 6.40 PLN brutto 5.20 PLN netto TAK
10 1780 CIRCLIP SW 23 6.40 PLN brutto 5.20 PLN netto TAK
31 1799 SHAFT WASHER 21.5X31X1 250 END 35.92 PLN brutto 29.20 PLN netto TAK
12 1782 NEEDLE BEARING K 20X24X10 250 CUT 102.83 PLN brutto 83.60 PLN netto TAK
26 1795 CIRCLIP SW 21 39.98 PLN brutto 32.50 PLN netto TAK
25 1794 Washer 19.5x27.8x1 35.92 PLN brutto 29.20 PLN netto TAK
